Zhongtuo Roll Forming Machinery Co., ltd

Panel Rib Double Layer Machine For Roofing
Panel Rib Double Layer Machine For Roofing
Panel Rib Double Layer Machine For Roofing
Panel Rib Double Layer Machine For Roofing
Panel Rib Double Layer Machine For Roofing

Panel Rib Double Layer Machine For Roofing

Unit Price: USD 28500 - 6500 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: Zt-003-109

Additional Info

    Packaging: 40 GP

    Productivity: 25 m/min

    Brand: zhongtuo

    Transportation: Ocean

    Place of Origin: hebei

    Supply Ability: 30 sets/month

    Certificate: ce/iso9000

Product Description

Panel Rib And Panel Double Layer

Machine For Roofing

Product Description

Colored steel are widely used in building: the steel-structured large-scale warehouses, plants, super-

markets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, resi-

dences, and different kinds of greenhouses. What's more, equipment can be designed and manufac-

tured as customers' requests.

Components of steel sheet Roll Forming Machine

No.

Name

Unit

Qty

1

Manual Decoiler

set

1

2

Main forming machine

set

1

3

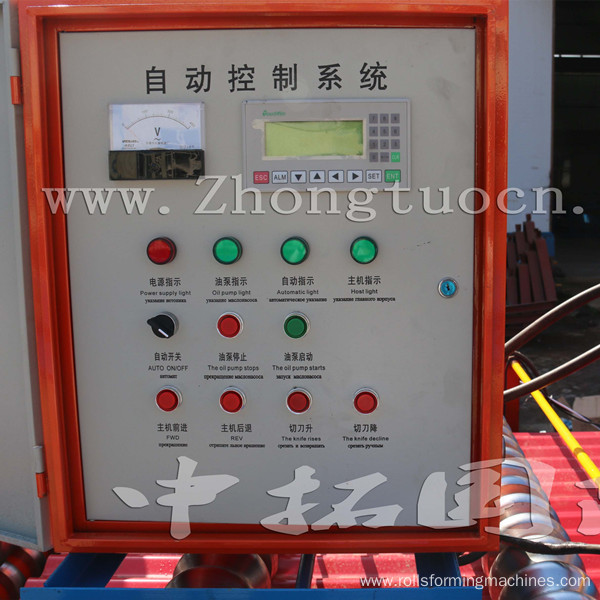

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1

steel sheet roll forming machine Production Process:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→

Products receiving

Details of steel sheet roll forming machine:

Double Layer Roll Forming machine (22)

Parameters:

No.

Main Parameters of Double Layer Roll Forming Machine

1

Suitable to process

Colored Steel plate, galvanized board, aluminum plate

2

Control system

PLC control

3

Productivity

25 m/min

4

Width of the raw material

1250 mm

5

Thickness of the plate

0.3-0.6 mm

6

Rollers

Up layer:13 rows

Down layer:18 rows

7

Diameter of the rollers

70 mm

8

Rolling galvanization thickness

0.05 mm

9

Material of the cutting blade

Cr12

10

Dimension

9.2 m*1.6 m*1.4 m

11

Weight

About 13.2T

12

Voltage

380 V 50 Hz 3 phases

13

Power

5+4 KW

More photos of steel sheet roll forming machine:

Double Layer Roll Forming machine (10)

Double Layer Roll Forming machine (3)

Packaging & Shipping

Packaging Detail of steel sheet roll forming machine:

1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Our Services

1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the

machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and

other necessary things.

2. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.

Company Information

Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter

which has its own factory and also cooperate with several production factories and associated nte

rprises, concerning with the design, development and production of cold roll forming machines,m

aterial of building. It is located in northwest of CangZhou, as a long history of cold roll forming- machine production base. All products comply with international quality standards and are greatly

appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,

South America, and Australia and so on.

FAQ

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.


2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We

need your machines running in order to keep your business running.


3. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we

can pick up you.

b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours)

, then we can pick up you.


4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts

replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we

can through negotiationfor to solve the problems,and we supply the technical support for the whole

life of the equipment.


5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.


6. You are trade company or factory?

We are trade company but we also have own factories. Building trade company is just for exporting

varioustypes of cold roll forming machines.


7. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make

sure thatour machine could use more than 20 years without any problem. We can provide 2 years free

qualityassurance.


8. How long the machine could be made?

Normally speaking, Welded Pipe Making Machine could be made without 45 working days. If you need

machines in a hurry, we can make it for you less than a month.
