Basic Info
Model No.: ZT-005-01
Additional Info
Packaging: nake package
Productivity: 30 sets/month
Brand: ZHONGTUO
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 30 sets/month
Certificate: CE, ISO9001
Product Description
Metal Doors And Frames Roll Forming Machine Prices
Metal Doors And Frames Roll Forming Machine
The doorframes based primarily on their low initial cost may result in abnormal maintenance and replacements. Proper door selection is based on Frequency of Use and Resistance to Impact.
Door Frames are widely applied in related structure industry because of its advantage compared with other material`s. Whether you are looking for a pre-engineered door frame system or any
of the Custom frames are available in virtually any made-to order frame configuration and dimension. We can supply any other customization doorframes machine that you may need. Just let us know you required details.
Main Parameters:
- Suitable Material
Type GI, PPGI
Thickness 0.60-1.20mm
- Machine Material
Roller No. 45 steel chrome plated
Cutting Blade Cr12 quenched
- Power Requirement
Main Motor 3kw
Hydraulic 2.2kw
- Speed
Forming Speed 20-25m/min, Excludes cutting & punching
- Decoiler
Max Capacity 2000kgs
Suitable OD 1200mm
Suitable ID 450/550mm
Max Width 300mm
- Forming Stand
About 14 group Up to profile
- Transmission
Chain, sprocket Double-row entire chain
- Type of Cutting
length-set cutting, Hydraulic cutter
- Control System
Mitsubishi PLC& transducer
Composition of Metal Doors And Frames Machine:
1. De-coiler
2. Feeding and Leveler
- Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

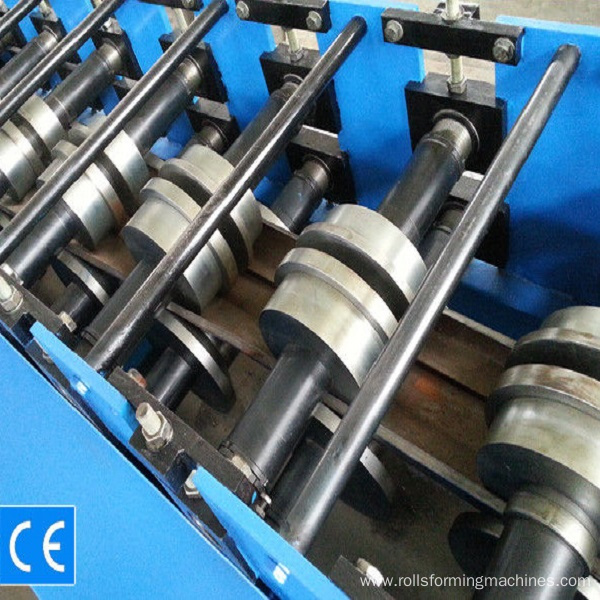

3. Roll Forming

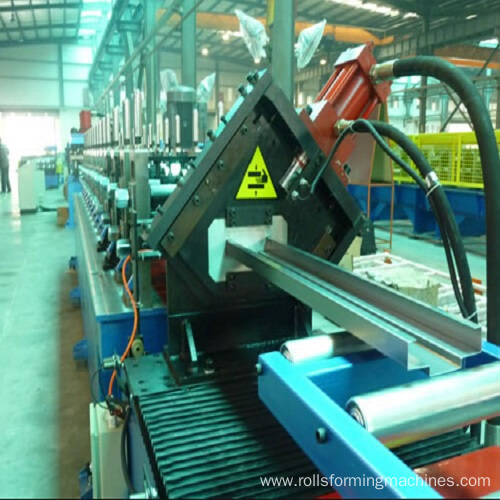

4.Cutting Part
- Material of blades : Gcr12MoV quenched
Sample of shutter door:
The video of Metal Door Frame Roll Forming Machine:
Product Categories : Door Frame Roll Forming Machine
