Additional Info
Packaging: nude packing
Productivity: 60m/min
Brand: Zhongtuo
Place of Origin: China
Supply Ability: 30 sets/month
Certificate: ISO, CE9001
Product Description
Making tube mill machine for carbon steel/Q235/SS400
The mill is intended for manufacturing of round pipe of Φ76 mm-Φ168 mm with thickness of 2.0 mm–5.0 mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
What our carbon steel pipe tube can do for you:
| Diameter(mm) | 8-16 | 10-26 | 14-38 | 20-63.5 | 32-70 | 30-100 | 50-90 | 60-120 | 40-130 | 50-130 |
| Thickness(mm) | 0.3-1.0 | 0.4-1.5 | 0.6-1.8 | 0.8-3.0 | 1.0-3.0 | 1.0-4.0 | 1.5-4.0 | 2.0-5.0 | 1.0-6.0 | 2.0-6.0 |
| Speed(m/min) | 80-100 | 80-100 | 80-100 | 70-80 | 70-80 | 60-70 | 50-60 | 40-50 | 20-60 | 20-50 |
| Host motor power(Kw) | 22 | 37 | 75 | 132 | 55*2 | 132*2 | 90*2 | 110*2 | 220*2 | 220*2 |
| High-frequency equipment(Kw) | 60 | 60 | 100 | 200 | 250 | 250 | 250 | 300 | 300 | 400 |
| Equipment composition | Uncoiler, flattener, shearer welder, storing device, forming sizing unit, flying saw, discharging table, packer, high-frequency device | |||||||||
Making tube mill machine Shearing & butt welding machine

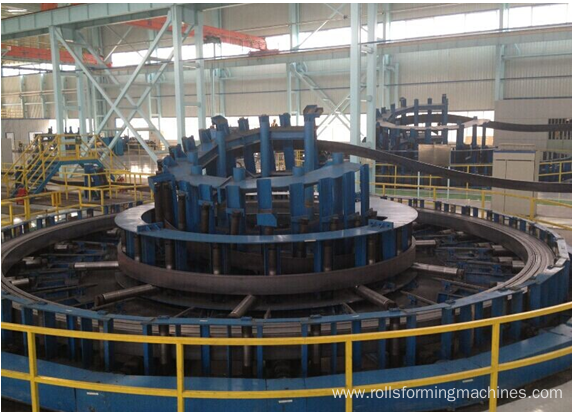

Making tube mill machine Horizontal spiral accumulator

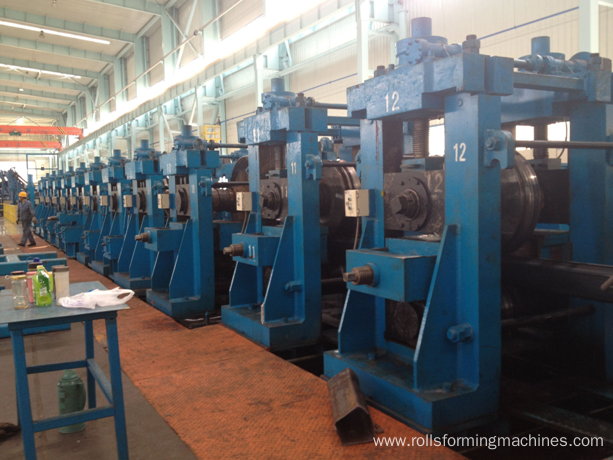

Making tube mill machine Forming & sizing section
Forming mill gearbox, universal joint
Making tube mill machine Welding section, it takes Solid state High frequency welder

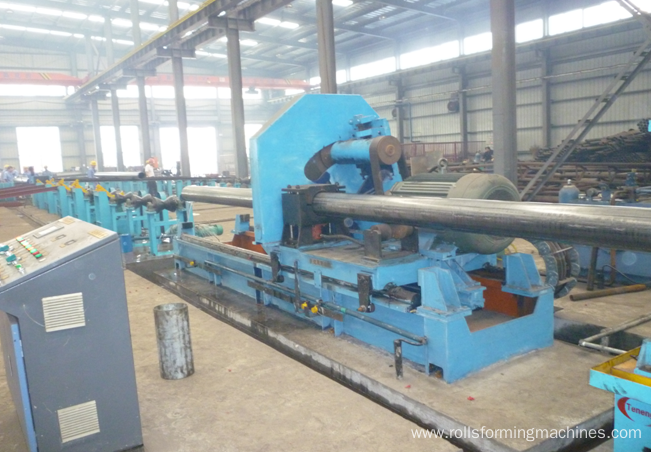

CNC flying friction saw designed for the tube mill
